Slotted Angle Shelving

Q: What is Slotted Angle Shelving?

Slotted angle shelving is a fundamentally flexible and economical storage system constructed from pre-punched, slotted steel angle irons that are connected using nuts, bolts, and braces. Unlike pre-configured systems, it operates like a storage construction kit , allowing you to build shelves, racks, workbenches, or enclosures to any custom dimension within the material limits.

Q: How does slotted angle shelving work?

The system is based on a simple, modular principle: Standard-length steel angles (e.g., 1”x1” or 2”x2”) are uniformly slotted. Using bolts, nuts, and connecting plates , these angles are assembled into uprights, beams, and braces to form a rigid frame. Shelf decks (particle board, wire mesh) are then added. This bolt-together design allows for precise tailoring to fit irregular spaces and specific load requirements .

Q: What are the primary benefits of slotted angle shelving?

Its core value lies in its unrestricted adaptability: 1) Ultimate Customizability: Can be built to any width, depth, or height, fitting into odd corners, around obstacles, or for unique item sizes. 2) Very Low Cost: Typically offers the lowest material cost per unit of any steel storage system. 3) DIY-Friendly & Reconfigurable: With basic tools, it can be easily assembled, modified, or completely disassembled for reuse in a new layout.

Q: Where is slotted angle shelving most effectively used?

It is the ideal solution for non-standard, budget-conscious, or frequently changing storage needs , including: Creating workbenches and shop furniture, building enclosures for equipment or cages, storage in irregular spaces (e.g., under stairs, in angled rooms), light industrial storage where standard sizes don’t fit, and as a versatile material for prototyping storage layouts before investing in permanent systems.

Q: Can it support heavy loads and resist corrosion?

Load capacity and durability are design-dependent. Capacity is determined by angle iron thickness, bolt gauge, and frame bracing . Well-designed systems can support 150-400 kg per shelf . For harsh environments, hot-dip galvanized or powder-coated angles provide excellent corrosion resistance, making them suitable for garages, warehouses, or damp conditions.

Q: How does slotted angle shelving compare to prefabricated boltless or rivet shelving?

It occupies the opposite end of the “convenience vs. control” spectrum . Prefabricated shelving (boltless/rivet) offers speed, consistency, and optimized components for standard applications. Slotted angle shelving trades that convenience for complete dimensional control and lower cost , serving as the go-to solution when standard sizes fail or budget is the primary driver . It is the raw material for storage construction .

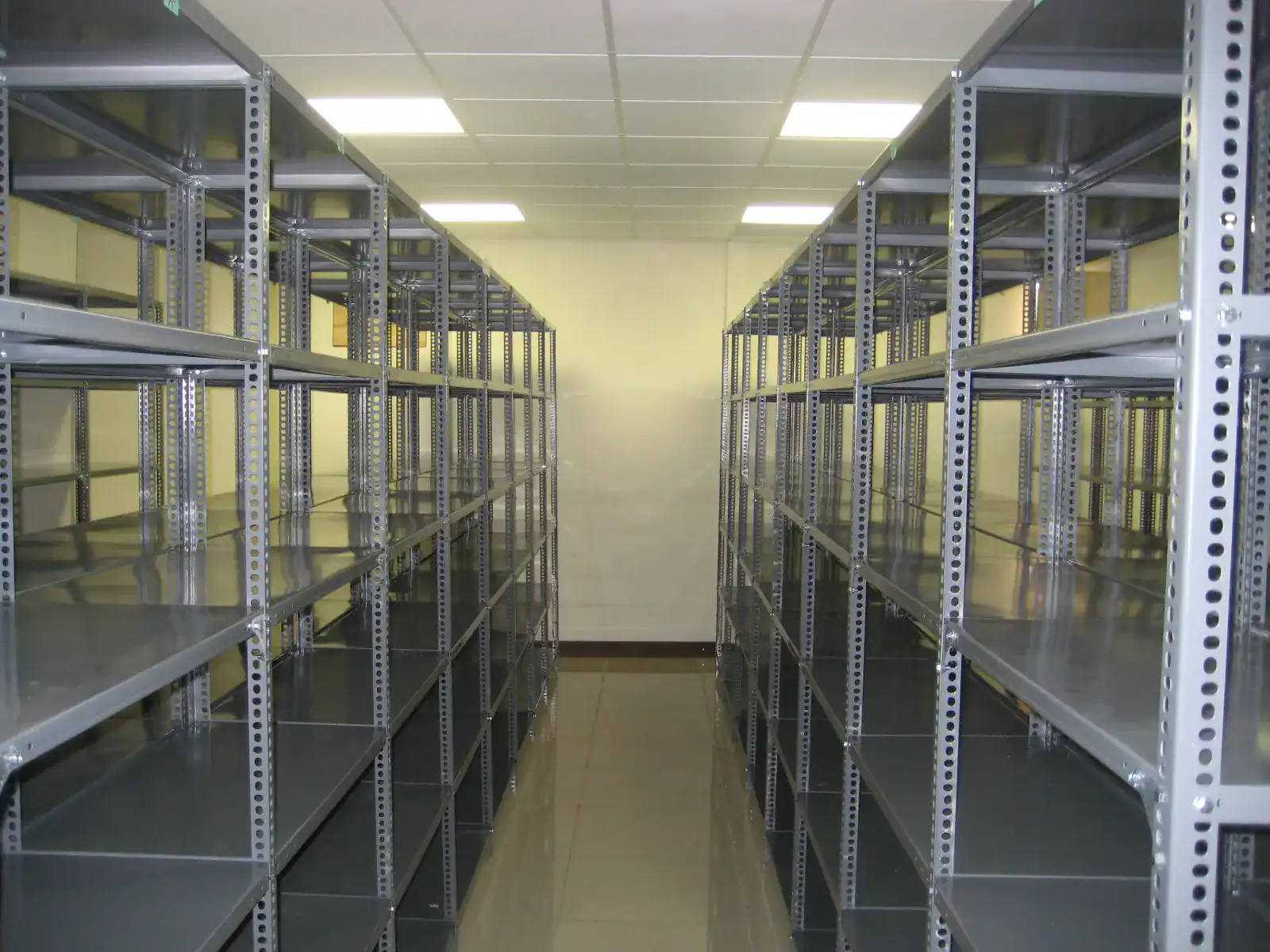

Low-Cost Slotted Angle Shelving

iWarehousing’s range of slotted angle shelving systems provides warehouses worldwide with efficient, low-cost solutions for inventory storage and management. Lightweight yet durable, these have a modular setup that can seamlessly adapt to various industry demands. Slotted angle shelving systems work best for warehouses that focus on managing diverse types of light cargo.

Slotted angle shelving systems from iWarehousing are designed by seasoned designers and made from top-grade Q235B steel, resulting in stable and resilient construction. These are finished with a surface coating process that improves their durability and service life.

Benefits of Our Slotted Angle Shelving

Modular Design

Adjustable shelf heights allow for customizable layouts to suit various storage needs.

Screw-Based Assembly

Requires screws for assembly, providing enhanced structural integrity compared to boltless rivet shelving, ensuring secure storage for light loads.

Cost-Effective Temporary Storage

It offers an affordable solution for short-term or interim storage, making it budget-friendly for small businesses or homeowners.

Manual Operation Supported

Designed for manual handling, it requires no heavy machinery and is suitable for environments where hand trucks or direct access are used.

Flexible Layout Configuration

The slotted design enables easy reconfiguration, allowing users to adapt the shelving to changing storage requirements or space constraints.

Durable Construction

It is made from sturdy galvanized steel, ensuring durability for repeated use while remaining lightweight for easy handling.

When and Where to Use Slotted Angle Racks

This is ideal for scenarios that require frequent manual access to lightweight items. It is best used for temporary storage needs, such as office relocations, seasonal inventory management, and home organization projects.

Home Garages:
The flexible layout fits small spaces and its affordability suits home budgets.
Small Office Supply Rooms:
Its modular design can accommodate documents and office supplies of various sizes, and manual operation provides easy daily access.
DIY Spaces:
The slotted design allows for customization to fit different tool sizes. Manual operation is ideal for hands-on environments, and its durability ensures long-term use.
Small Storage Rooms for Retail Shops:
Its easy assembly and portability allow for quick setup of seasonal stock, and its flexible layout optimizes small backroom spaces. Its cost-effectiveness makes it ideal for retailers with fluctuating inventory.

Specification

结构梁尺寸规格表

Beam Length (mm)	Frame Heights (mm)	Frame Depth (mm)
1372	2438	838
2591	3048	914
2743	3658	1067
3048	4267	1219

Tailor-Made Shelving Solutions

As your warehouse storage solutions manufacturer In China, we’re committed to developing bespoke slotted angle shelving systems according to your needs. Our robust customization options open the door for vast modifications to existing products, enhancing their features and making them more marketable to your customers. Moreover, our designers can provide professional recommendations based on expressed demands and industry trends.

Start Your Custom Solution

View Customization

Industries We Serve

Manufacturing

Food Beverage

E-commerce

3PL (Third-party Logistics)

Construction & Materials

Apparel & Textile

Retail

Pharmaceutical

Chemical

Automotive

Scale Your Business with iWarehousing’s Expertise

30+ Years of Experience

Manufacturing slotted angle shelving solutions since 1990 makes us a reliable partner towards success.

State-of-the-Art Equipment

Utilizing the latest laser cutters, steel rollers, punchers, and other equipment for faster and more efficient production.

US and EU Certified

Our slotted angle shelving meets the requirements per ANSI MH16.1-2012(R2019) and BS EN 15512:2020+A102022.

Consistent Quality Control

Regular inspections and meticulous testing guarantee the optimal and long-term performance of our storage solutions.

Seasoned Professionals

Work with 10-year veteran designers and engineers who deeply understand your product needs.

Reliable Support Staff

Get constant assistance from our support specialist, with prompt responses to concerns within 24 hours.

Project Gallery

modern,interior,of,new,empty,warehouse.,racks,pallets,shelves.,metal

chisinau,,moldova,,may,2020:,showroom,of,domestic,appliance,store,with

automated,brick,production,packing,and,conveyor,transport,at,manufacturing,plant.

online,selling,strategies,for,startup,,small,business,,and,e commerce,success

mechanic,repairing,engine,with,tools,in,automotive,workshop.

FAQ

What is Slotted Angle Shelving?

Slotted angle shelving is a fundamentally flexible and economical storage system constructed from pre-punched, slotted steel angle irons that are connected using nuts, bolts, and braces. Unlike pre-configured systems, it operates like a storage construction kit, allowing you to build shelves, racks, workbenches, or enclosures to any custom dimension within the material limits.

How does slotted angle shelving work?

The system is based on a simple, modular principle: Standard-length steel angles (e.g., 1”x1” or 2”x2”) are uniformly slotted. Using bolts, nuts, and connecting plates, these angles are assembled into uprights, beams, and braces to form a rigid frame. Shelf decks (particle board, wire mesh) are then added. This bolt-together design allows for precise tailoring to fit irregular spaces and specific load requirements.

Key Factors for an Optimal Slotted Angle Shelving System

What are the primary benefits of slotted angle shelving?

Its core value lies in its unrestricted adaptability:

1) Ultimate Customizability: Can be built to any width, depth, or height, fitting into odd corners, around obstacles, or for unique item sizes.

2) Very Low Cost: Typically offers the lowest material cost per unit of any steel storage system.

3) DIY-Friendly & Reconfigurable: With basic tools, it can be easily assembled, modified, or completely disassembled for reuse in a new layout.

Where is slotted angle shelving most effectively used?

It is the ideal solution for non-standard, budget-conscious, or frequently changing storage needs, including: Creating workbenches and shop furniture, building enclosures for equipment or cages, storage in irregular spaces (e.g., under stairs, in angled rooms), light industrial storage where standard sizes don’t fit, and as a versatile material for prototyping storage layouts before investing in permanent systems.

Can it support heavy loads and resist corrosion?

Load capacity and durability are design-dependent. Capacity is determined by angle iron thickness, bolt gauge, and frame bracing. Well-designed systems can support 150-400 kg per shelf. For harsh environments, hot-dip galvanized or powder-coated angles provide excellent corrosion resistance, making them suitable for garages, warehouses, or damp conditions.

Where Slotted Angle Shelving Fits Among Storage Types

How does slotted angle shelving compare to prefabricated boltless or rivet shelving?

It occupies the opposite end of the “convenience vs. control” spectrum. Prefabricated shelving (boltless/rivet) offers speed, consistency, and optimized components for standard applications. Slotted angle shelving trades that convenience for complete dimensional control and lower cost, serving as the go-to solution when standard sizes fail or budget is the primary driver. It is the raw material for storage construction.

How to Choose & Implement Slotted Angle Shelving

What is required to design and assemble a slotted angle system?

Success requires a shift from “selecting” to “designing and building”:

Design & Planning: This is the most critical step. Precisely measure your space and items. Sketch the frame design, specifying all dimensions. Calculate the required lengths of angle iron and quantities of bolts, nuts, and braces. Planning kits or CAD software can help.
Material Selection & Procurement: Choose the angle iron profile (size and gauge) based on load needs. Select galvanized or painted finish. Purchase all components, including shelf decking material.
Assembly Process: You will need basic hand tools: wrenches, socket sets, a hacksaw or angle grinder (for cutting), a drill, and a measuring tape. Assembly involves cutting angles to length, bolting the frame together square and level, and adding cross-bracing for stability.
Safety & Best Practices: Always use safety glasses when cutting or drilling. Ensure the structure is square and level during assembly. Do not skip cross-bracing—it is essential for preventing racking and collapse. Securely anchor tall or heavily loaded units to the wall or floor.
Implementation Tip: Consider starting with a small, simple project (like a single workbench) to familiarize yourself with the system before undertaking a large storage wall.
